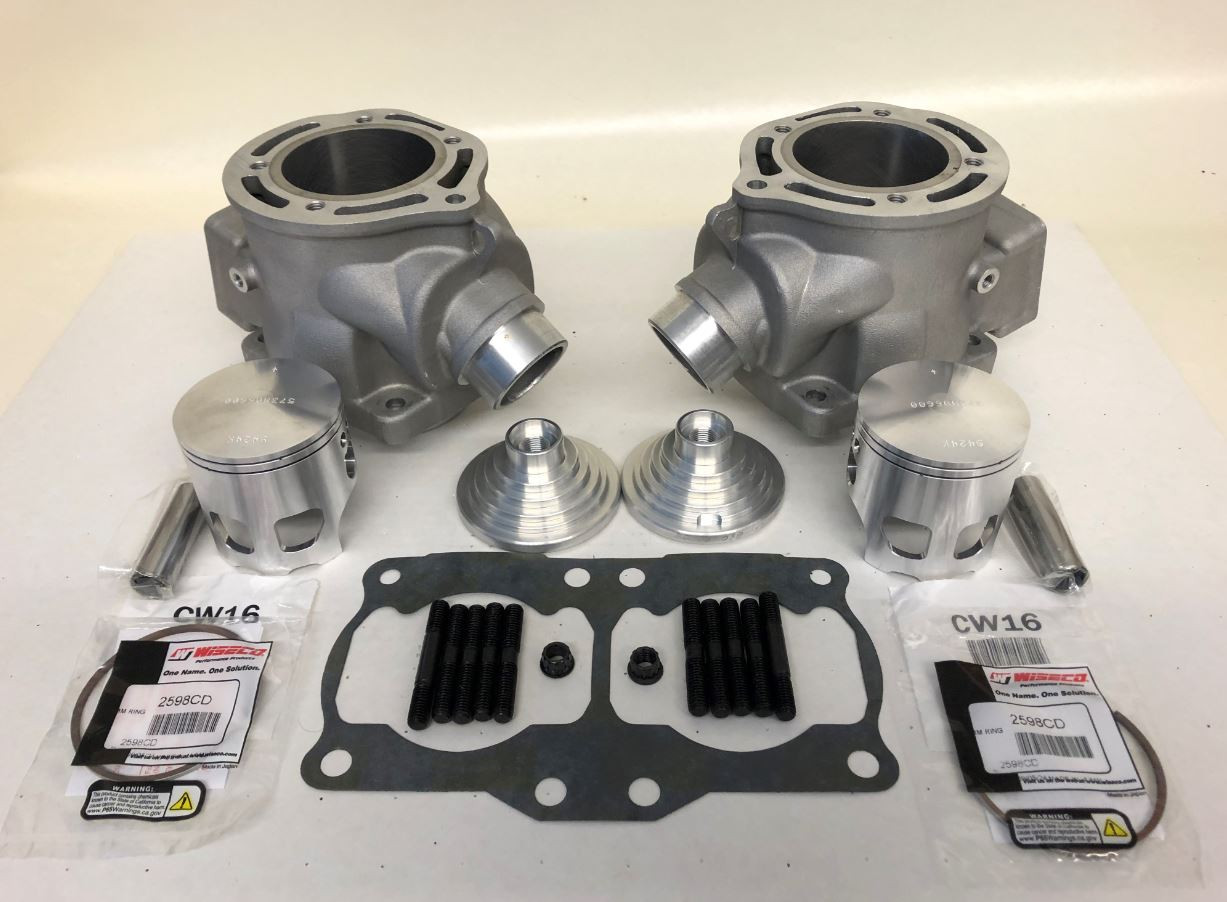

"NEW" ASSASSIN-2 397CC/424CC STEEL SLEEVE CYL KIT

             "NEW" ASSASSIN-2 CYLINDER KIT WITH A STEEL BORE SIZE OF 66MM (397cc)

THESE ARE OUR NEW DESIGN CYLINDERS THE ASSASSIN-2'S WITH A STEEL SLEEVE THAT STARTS OFF AT A 66MM BORE SIZE (397CC) AND CAN BORED ALL THE WAY UP TO A 68.25MM (424cc). THIS CYLINDER BORE WILL UTILIZES ALL THE BLASTER PISTON SIZES (66MM THRU 68.25MM). THIS KIT IS FOR PEOPLE THAT DO NOT WANT A NICKASIL BORE AND WOULD RATHER JUST BORE THE CYLINDER TO THE NEXT SIZE RATHER THEN DEALING WITH THE NICKASIL REPLATING PROCESS. THIS IS THE SAME EXACT CYLINDER AS THE 68MM 421CC WITH ALL THE NEW UPGRADES TO PORT DESIGNS.

***THIS CYLINDER KIT MUST BE USED WITH A 4MILL LONG ROD (115MM) CRANKSHAFT.***

WE HAVE SET THE PORT TIMING FOR THESE CYLINDERS IN A MODERATE SETTING FOR ANY TYPE OF RIDING OR RACING:

EXHAUST PORT TIMING IS: 194 DURATION

TRANSFER TIMING IS: 121 DURATION

THE NEW CHANGES TO THE CYLINDERS ARE:

1) INTAKE TUNNEL ROOF HAS A SMOOTHER TRANSITION.

2) BOOST PORTS WERE ADDED TO THE INTAKE.

3) THE OUTSIDE CYLINDER AREAS AROUND THE BOOST PORTS WERE FILLED IN SO BOOST PORTS CAN BE MADE LARGER WITHOUT BREAKING THROUGH. THIS EXTRA MATERIAL HAS CAUSED THE USE OF AN ARP NUT ON THE REAR OUTSIDE INTAKE STUD.

4)TRANSFER TUNNELS WERE MADE LARGER AND NOW REQUIRE THE USE OF A CUB BASE GASKET. THE INTERNAL BORE SIDE WALL IS ROUNDED FOR BETTER FLOW.

4A)THE TRANSFER DIVIDER RIB IS SHORTER AND LOWER TO ALLOW FUEL FROM THE BOOST PORTS TO REACH THE FRONT TRANSFER WINDOW EASIER.

5) THE OUTSIDE OF THE CYLINDER AROUND THE TRANSFER PORTS WERE EXTENDED TO GIVE MORE SEALING AREA AND MORE ROOM IF ADDITIONAL PORTING IS DESIRED.

6) THE FRONT TRANSFER WINDOW IS ANGLED FOR BETTER FLOW.

7) THE EXHAUST PORT SHAPE HAS CHANGED FOR MORE AREA AND FLOW.

8) THE TRIPLE PORTS ARE LARGER AND THE TRIPLE TUNNEL WAS INCREASED IN SIZE TO MATCH.

THIS KIT REQUIRES THE USE OF A 9 or 10 DEGREE BIG BORE DOME: WE SUPPLY WITH THE CYLINDER KIT A CUSTOM 22CC BIG BORE DOME TO MATCH THE 66MM BORE SIZE WHICH WILL REQUIRE THE USE OF PREMIUM PUMP GAS.
